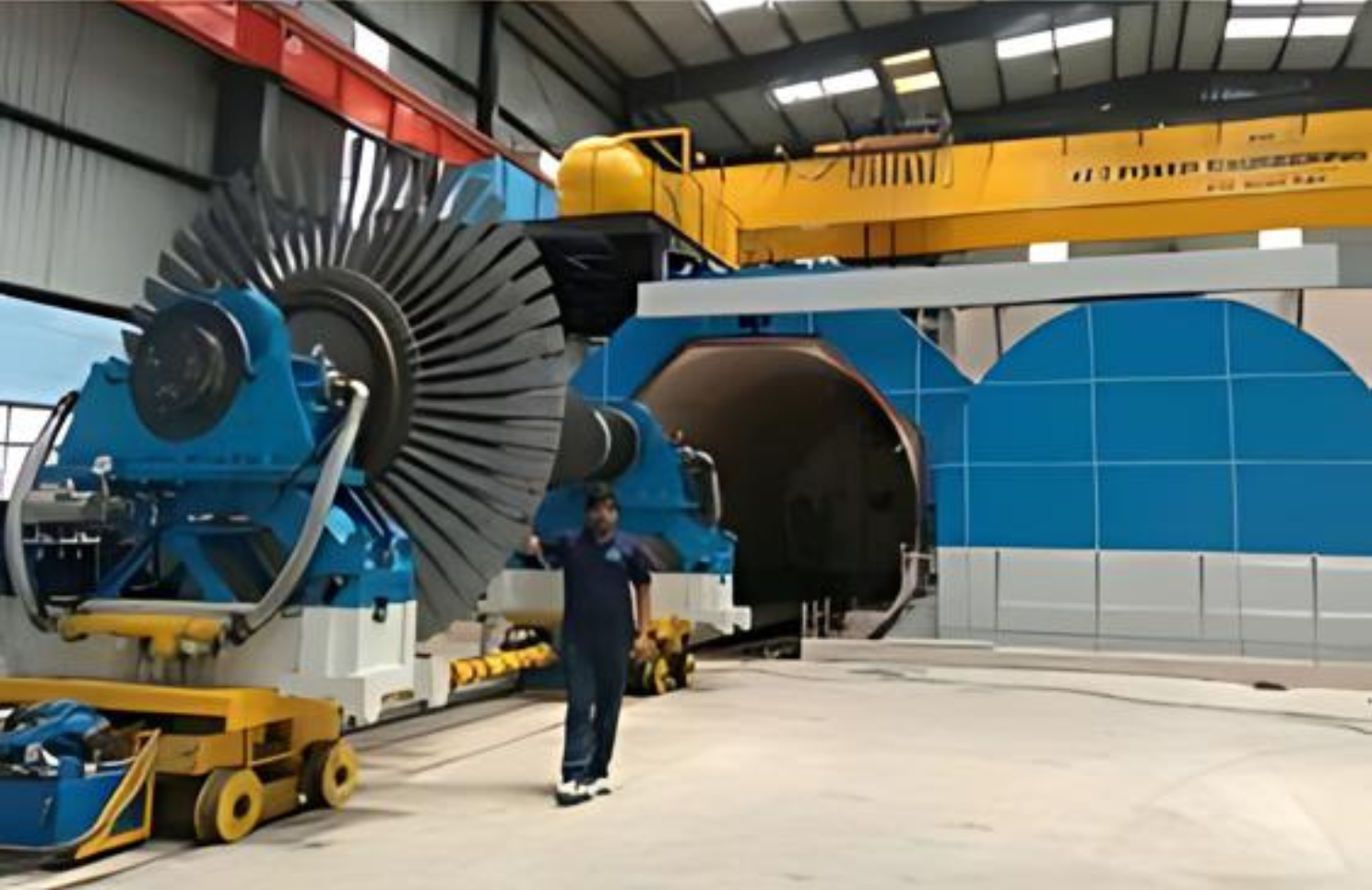

EQUIPMENT: HIGH SPEED BALANCING MACHINE MODEL HR 25 K (B)
Technical Specification:
- HR 25K (B) Model pedestals.
- MP-102 Balancing measuring system with analysis software.
- Weight of the work piece: 0.5 -50 tons.
- Balancing accuracy – 0.2 g.mm/kg.
- Max diameter of the work Piece – 3500 mm.
- Max length of the work piece – 10,000 mm.
- Min length between the bearings – 750 mm.
- Operating speed range – 0- 16,000 rpm.
